Complete packages with Interface, Harness and Bin File Definitions
Product Description Price

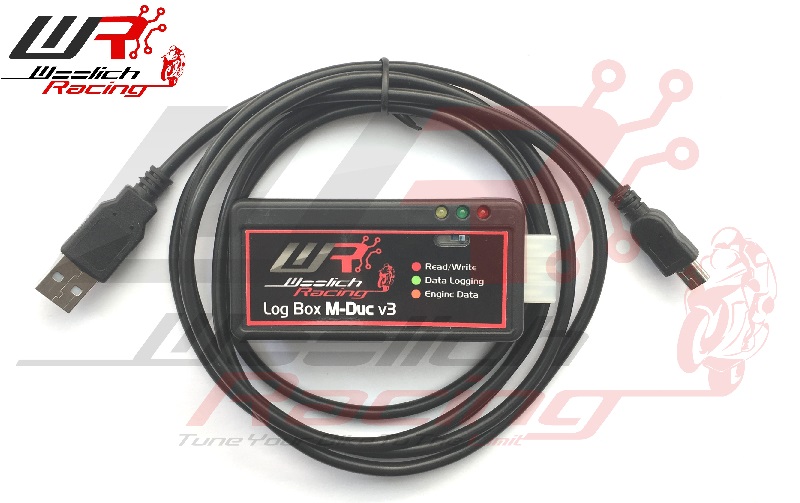

2018-2020 Ducati V4R - Log Box M-Duc v3 - Zeitronix ZT-3 Wideband Package
2018-2020 Ducati V4R - Log Box M-Duc v3 + Zeitronix ZT-3 Wideband Package 2018-2020 Ducati V4R - Log Box M-Duc v3 + Zeitronix ZT-3 Wideband Package 2018-2020 Ducati V4R - Log Box M-Duc v3 + Zeitronix ZT-3 Wideband Package
This package includes everything you need to start tuning your 2018-2020 Ducati V4R with our Log Box M-Duc v3 and Zeitronix ZT-3 Wideband O2 Sensor.
  • Log Box M-Duc v3
  • USB Cable
  • On board 16GB micro SD card
  • Ducati Harness Type 2
  • Zeitronix ZT-3 Wideband O2 Controller
  • Bin File Definitions in Woolich Racing Tuned Software

Ducati Wideband O2 Installation Kit type 2:
  • RJ12 cable to connect Zeitronix to Log Box
  • Ducati Power Harness type 3
  • O2 sensor bung
US$746.00
ex Sales Tax VAT
More Details

This product comes with 1 Bin File Definition Key allowing you to tune 1 ECU's as many times as you like. Additional Bin File Definition Keys are required for each additional ECU's and can be purchased from within the WRT software.
Race Tools: Quickshifter, Launch Control, Pit Speed Limiter
Product Description Price

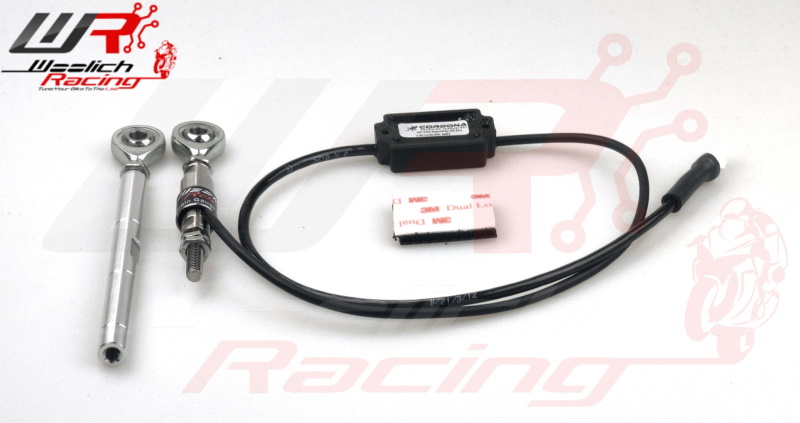

Ducati Quickshifter Type 2
Ducati Quickshifter Type 2
Replacement plug-and-play replacement Quickshifter for Ducati models on the V2 and V4 platform. This replacement sensor offers a faster shift response compared to the factory Ducati Quickshifter unit.

The package includes:
  • High quality strain gauge Quickshifter with digitally controlled pressure sensing
  • 120mm Shift rod for standard shift pattern (or 110mm for V4 R) *
  • 2x 6mm Rod Ends
  • Velcro for mounting

* Contact us after ordering if you have after-market rearsets and we will swap the shift rod for a generic rod that can be cut and tapped to the correct length.
US$472.00
ex Sales Tax VAT
More Details
Bin File Definitions - for use in Woolich Racing Tuned software
Product Description Price
2018-2020 Ducati V4R Stock Bin File Definitions
2018-2020 Ducati V4R Stock Bin File Definitions
Purchase this item to gain access in the Woolich Racing Tuned software to the stock bin files for the 2018-2020 Ducati V4R.



Note: The WRT software is only available to verified Woolich accounts. We only verify customer accounts that have purchased the necessary products (Woolich Log Box or USB interface, along with the appropriate harness and -if required- a bin file definition key) to flash their ECU. Accounts with no purchases of the required products can not be verified.
US$ 105.00
ex Sales Tax VAT
More Details

   Features available for Ducati V4R 2018-2020
  • TPS Fuel Maps
  • Ignition Timing Maps
  • Electronic Throttle Valve (ETV) Maps
  • Torque Maps
  • RPM Limiter
  • Fan Temperature
  • AFR Closed Loop Maps
  • Disable Evap / Purge Valve
  • Disable Stock O2 Sensor
  • Disable Exhaust Valve
  • Disable PAIR Valve / AIS
  • Engine Data - View Live Engine Data
  • Woolich Racing AutoTune - (Requires Applicable LogBox + Zeitronix Package)

ECU Part Numbers:
  • CAQD2720 D2720311FABAAB
  • CAQD2730 D2730311FABAAB
  • CAQD2730 D2730311FABABB
  • CAQD2730 D2730311FABACB
  • CAQD2730 D2730311FABACB Ackro
  • CAQD2730 D2730311FABBAA
  • CAQD2730 D273I311FABACO

This product comes with 1 Bin File Definition Key allowing you to tune 1 ECU's as many times as you like. Additional Bin File Definition Keys are required for each additional ECU's and can be purchased from within the WRT software.
Harnesses
Product Description Price

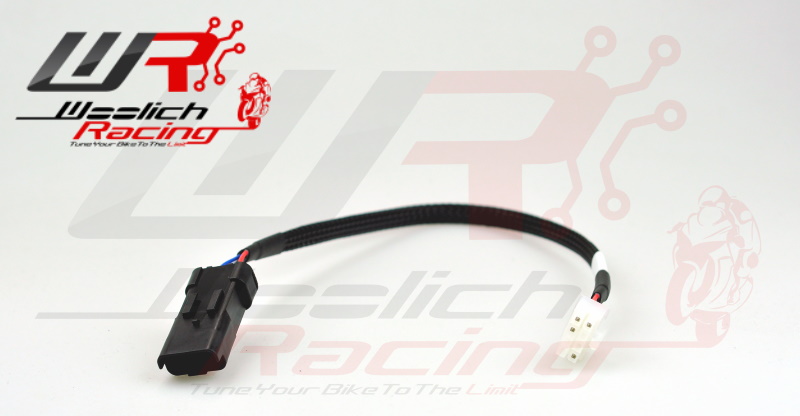

Ducati Harness Type 2 (DH2)
Ducati Harness Type 2 (DH2)
On Bike harness to connect Ducati V4\V4S\V4R (some models V4 Streetfighter) with 4 pin Ducati Diagnostic Plug to Woolich Racing Interface
US$42.00
ex Sales Tax VAT
More Details
Extension Harness Long
Extension Harness Long
The Extension Harness - Long is a 8 pin Molex (male) to 8 Pin Molex (female) entension harness 1100mm long that allows you to extend the length of all Woolich Racing Harnesses.
US$32.00
ex Sales Tax VAT
More Details
Extension Harness Short
Extension Harness Short
The Extension Harness - Short is a 8 pin Molex (male) to 8 Pin Molex (female) extension harness 600mm long that allows you to extend the length of all Woolich Racing Harnesses.
US$21.00
ex Sales Tax VAT
More Details
Barrel to 2 Pin Plug Bench Harness Power Supply Connector
Barrel to 2 Pin Plug Bench Harness Power Supply Connector
This harness allows you to connect the 2 pin plug used on our Bench Harnesses to a 12v Power Supply with a standard 2.5mm barrel connector.
US$10.00
ex Sales Tax VAT
More Details
12V Bench Flashing Power Supply with Type A Plug (USA, Canada, Japan)
12V Bench Flashing Power Supply with Type A Plug (USA, Canada, Japan)
This 12V, 1.5A Power Supply (max output 13V) has been designed for use with Woolich Racing Bench Harnesses.

This product comes with an integrated on/off switch and interchangeable Type A plug used in USA, Canada, Japan and Mexico.

Input: 100-240V 50/60Hz
*This power supply is NOT designed to be used as a battery charger.
US$37.00
ex Sales Tax VAT
More Details
12V Bench Flashing Power Supply with Type C plug (Europe, Asia)
12V Bench Flashing Power Supply with Type C plug (Europe, Asia)
This 12V, 1.5A Power Supply (max output 13V) has been designed for use with Woolich Racing Bench Harnesses.

This product comes with an integrated on/off switch and interchangeable Type C plug used in most of Europe, parts of Asia, and parts of South America.

Input: 100-240V 50/60Hz
*This power supply is NOT designed to be used as a battery charger.
US$37.00
ex Sales Tax VAT
More Details
12V Bench Flashing Power Supply with Type I plug (AU, NZ, China)
12V Bench Flashing Power Supply with Type I plug (AU, NZ, China)
This 12V, 1.5A Power Supply (max output 13V) has been designed for use with Woolich Racing Bench Harnesses.

This product comes with an integrated on/off switch and interchangeable Type I plug used in Australia, New Zealand and mainland China.

Input: 100-240V 50/60Hz
*This power supply is NOT designed to be used as a battery charger.

US$37.00
ex Sales Tax VAT
More Details
12V Bench Flashing Power Supply with Type G plug (UK, Malaysia & Singapore)
12V Bench Flashing Power Supply with Type G plug (UK, Malaysia & Singapore)
This 12V, 1.5A Power Supply (max output 13V) has been designed for use with Woolich Racing Bench Harnesses.

This product comes with an integrated on/off switch and interchangeable Type  G plug used in the UK, Ireland, Malaysia & Singapore.

Input: 100-240V 50/60Hz
*This power supply is NOT designed to be used as a battery charger.
US$37.00
ex Sales Tax VAT
More Details
