Woolich Racing Products

Tuning Shop Packages
Woolich Racing Tuned Software

Select the Manufacturer, Model and Year.

Filters

Manufacturer
Model
Year
Product Type
Complete packages with Interface, Harness and Bin File Definitions
Product Description Price
2011-2015 Kawasaki ZX10R - USB (Mitsubishi) v3 Package
2011-2015 Kawasaki ZX10R - USB (Mitsubishi) v3 Package 2011-2015 Kawasaki ZX10R - USB (Mitsubishi) v3 Package
This package includes everything you need to start tuning your 2011-2015 Kawasaki ZX10R with our USB (Mitsubishi) v3.
  • USB (Mitsubishi) v3
  • USB Cable
  • Kawasaki Type 3a On Bike Harnesses
  • Bin File Definition in the Woolich Racing Tuned software
US$414.00
ex Sales Tax VAT
More Details

This product comes with 1 Bin File Definition Key allowing you to tune 1 ECU's as many times as you like. Additional Bin File Definition Keys are required for each additional ECU's and can be purchased from within the WRT software.
2011-2015 ZX10R - Log Box (Mv3) - Zeitronix ZT-3 Wideband Package
2011-2015 ZX10R - Log Box (Mv3) + Zeitronix ZT-3 Wideband Package 2011-2015 ZX10R - Log Box (Mv3) + Zeitronix ZT-3 Wideband Package 2011-2015 ZX10R - Log Box (Mv3) + Zeitronix ZT-3 Wideband Package
This package includes everything you need to start tuning your 2011-2015 Kawasaki ZX10R with our Log Box (Mitsubishi) and Zeitronix ZT-3 Wideband O2 Sensor.
  • Log Box (Mitsubishi)
  • USB Cable
  • On board 2GB micro SD card
  • Zeitronix ZT-3 Wideband O2 Controller
  • Zeitronix Wideband O2 Sensor (3 foot cable)
  • RJ12 cable to connect Zeitronix to Log Box
  • Zeitronix Installation Kit (12v relay, wires and connectors, O2 sensor bung etc)
  • Kawasaki Harness Type 3a
  • Bin File Definitions in Woolich Racing Tuned Software
US$751.00
ex Sales Tax VAT
More Details

This product comes with 1 Bin File Definition Key allowing you to tune 1 ECU's as many times as you like. Additional Bin File Definition Keys are required for each additional ECU's and can be purchased from within the WRT software.
Race Tools: Quickshifter, Launch Control, Pit Speed Limiter
Product Description Price
2011-2015 Kawasaki ZX10R Race Tools Package
2011-2015 Kawasaki ZX10R Race Tools Package

The Race Tools package allows you to enable Quickshifter, Launch Control and Pit Speed Limiter in the Stock ECU.

The package includes:

  • High quality strain gauge Quickshifter with digitally controlled pressure sensing that can be used in regular or race shift pattern.
  • Shift rod for standard shift configuration*
  • Kawasaki Race Tools Harness Type 1 which allows the quickshifter to be plugged into the bikes wiring harness**
  • Race Tools Key to allow the use of the Race Tools on one ECU in the Woolich Racing Tuned software.

Quickshifter Kill times are configurable per gear with 3D maps allowing Kill Times to be set for the full range of TPS and RPM combinations. The quickshifter kills both fuel and ignition.

Launch Control allows you to configure Delay, Launch RPM, Ramp Time and Ramp RPM

Pit Speed Limiter allows you to set the RPM to limit the speed while riding through the pits.***

* Contact us after ordering if you have after-market rearsets or are using a race shift pattern and we will swap the shift rod for a generic rod that can be cut and tapped to the correct length.

** This harness uses the stock Exhaust Valve plugs on the bike's harness, the stock Exhaust Valve should be removed from the bike and disabled in our software

*** Pit Speed Limiter harness sold separately.


Woolich Racing Race Tools requires you to Write the ECU. It is not a stand alone product. You will need to use the relevant Woolich Racing Interface and Bin File Definition to enable and configure Race Tools and write to the ECU. You can purchase this as a package on the product page for your bike. If you do not have a Woolich Racing Interface you can also visit a Woolich Racing - Tuning Partner and have them install and configure the Race Tools (additional fees and charges will apply).
US$494.00
ex Sales Tax VAT
More Details
2011-2015 ZX10R Launch Control Key
Launch Control is part of the our Race Tools Package. It allows you to set a Launch RPM and also Ramp Parameters to assist with getting fast consistent launches from your bike, all controlled by the stock ECU.

If you already have a Quickshifter or Air Shifter installed on your bike or you only need the Launch Control function you can purchase this Launch Control Key. The Launch Control Key allows you to enable the Launch Control for one ECU.
Woolich Racing Race Tools requires you to Write the ECU. It is not a stand alone product. You will need to use the relevant Woolich Racing Interface and Bin File Definition to enable and configure Race Tools and write to the ECU. You can purchase this as a package on the product page for your bike. If you do not have a Woolich Racing Interface you can also visit a Woolich Racing - Tuning Partner and have them install and configure the Race Tools (additional fees and charges will apply).
US$210.00
ex Sales Tax VAT
More Details
Pit Speed Limiter Harness
Pit Speed Limiter Harness
The Pit Speed Limiter harness is used with our Race Tools Package, it consists of a harness and water proof push button switch which allows you to limit the RPM of the bike in 1st gear while riding in the pits. You must have a Race Tool Package to use the Pit Speed Limiter Harness.

The Pit Speed Limiter harness also includes a stainless steel bracket used to mount the button on the bike's switch gear.

Woolich Racing Race Tools requires you to Write the ECU. It is not a stand alone product. You will need to use the relevant Woolich Racing Interface and Bin File Definition to enable and configure Race Tools and write to the ECU. You can purchase this as a package on the product page for your bike. If you do not have a Woolich Racing Interface you can also visit a Woolich Racing - Tuning Partner and have them install and configure the Race Tools (additional fees and charges will apply).
US$26.00
ex Sales Tax VAT
More Details
Bin File Definitions - for use in Woolich Racing Tuned software
Product Description Price
2011-2015 ZX10R Stock Bin File Definitions
2011-2015 ZX10R Stock Bin File Definitions
Purchase this item to gain access in the Woolich Racing Tuned software to the stock bin files for the 2011-2015 Kawasaki ZX10R



Note: The WRT software is only available to verified Woolich accounts. We only verify customer accounts that have purchased the necessary products (Woolich Log Box or USB interface, along with the appropriate harness and -if required- a bin file definition key) to flash their ECU. Accounts with no purchases of the required products can not be verified.
US$ 105.00
ex Sales Tax VAT
More Details

   Features available for Kawasaki ZX10R 2011-2015
  • IAP Fuel Maps
  • TPS Fuel Maps
  • Ignition Timing Maps
  • Ignition Dwell Map/s
  • Secondary Throttle Plate (STP) Opening Maps
  • Fuel Trim Map/s
  • Injector Balance Map/s
  • Intake Flap Opening Maps
  • Idle RPM
  • RPM Limiter
  • Fan Temperature
  • Quickshifter - (Requires Race Tools)
  • Launch Control - (Requires Race Tools)
  • Pit Lane Limiter - (Requires Race Tools)
  • Race Shift Pattern Sensor Configuration - (Requires Race Tools)
  • Disable Stock O2 Sensor
  • Disable Deceleration Fuel Cut
  • Disable Exhaust Valve
  • Disable PAIR Valve / AIS
  • Disable Top Speed Limiter
  • Traction Control Maps
  • ECU Mode
  • Retain Last Traction Control Setting
  • Change Traction Control Settings while riding
  • Engine Data - View Live Engine Data
  • Woolich Racing AutoTune - (Requires Applicable LogBox + Zeitronix Package)
  • Diagnostics: Read and Clear Fault Codes - (Requires Applicable V3 Interface)

ECU Part Numbers:
  • 21175-0326
  • 21175-0327
  • 21175-0328
  • 21175-0329
  • 21175-0330
  • 21175-0762
  • 21175-0763
  • 21175-0764
  • 21175-0765
  • 21175-0766

This product comes with 1 Bin File Definition Key allowing you to tune 1 ECU's as many times as you like. Additional Bin File Definition Keys are required for each additional ECU's and can be purchased from within the WRT software.
Harnesses
Product Description Price
Extension Harness Long
Extension Harness Long
The Extension Harness - Long is a 8 pin Molex (male) to 8 Pin Molex (female) entension harness 1100mm long that allows you to extend the length of all Woolich Racing Harnesses.
US$32.00
ex Sales Tax VAT
More Details
Extension Harness Short
Extension Harness Short
The Extension Harness - Short is a 8 pin Molex (male) to 8 Pin Molex (female) extension harness 600mm long that allows you to extend the length of all Woolich Racing Harnesses.
US$21.00
ex Sales Tax VAT
More Details
Barrel to 2 Pin Plug Bench Harness Power Supply Connector
Barrel to 2 Pin Plug Bench Harness Power Supply Connector
This harness allows you to connect the 2 pin plug used on our Bench Harnesses to a 12v Power Supply with a standard 2.5mm barrel connector.
US$10.00
ex Sales Tax VAT
More Details

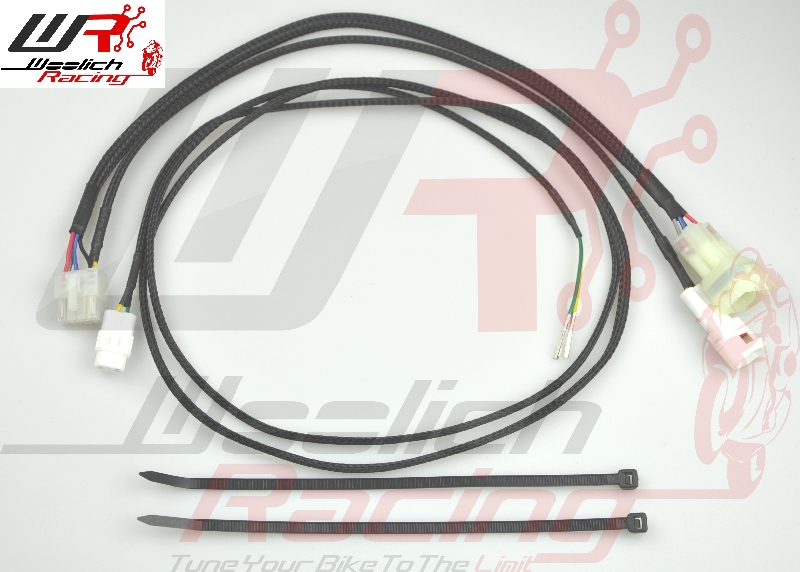

Kawasaki Harness Type 3a (KH3A/3B/8B-KEH3A)
Kawasaki Harness Type 3a (KH3A/3B/8B + KEH3A)
Bike Harness for 2011-2015 Kawasaki ZX10R. Allows connection between Woolich Racing Mitsubishi USB Interface and bike harness. Once this harness is installed it allows you to flash the ECU without pulling out the ECU.
Includes:
  • Kawasaki Harness Type 3 (Main)
  • Kawasaki Extension Harness Type 3a
US$47.00
ex Sales Tax VAT
More Details

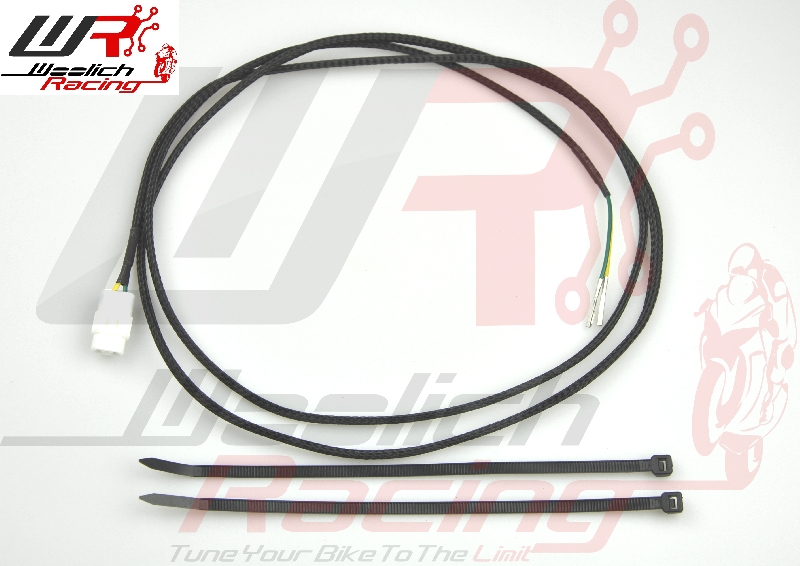

Kawasaki Extension Harness Type 3a (KEH3A)
Kawasaki Extension Harness Type 3a (KEH3A)
The Kawasaki Extension Harness Type 3a is the 2 wire harness part of the Kawasaki Harness Type 3a that is left on the bike. You can purchase additional 3a Extension Harnesses to tune additional bikes.
Includes:
  • Kawasaki Extension Harness Type 3a
US$26.00
ex Sales Tax VAT
More Details

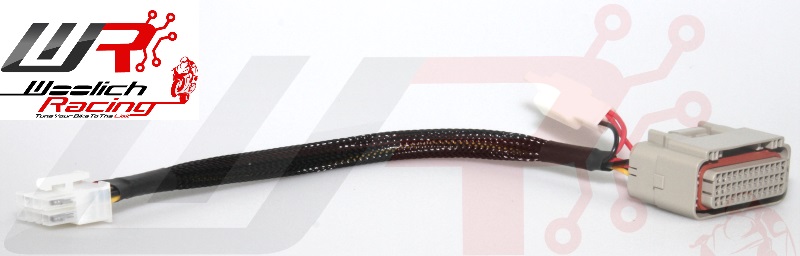

Kawasaki Bench Harness Type 3 (KBH3)
Kawasaki Bench Harness Type 3 (KBH3)
This bench flashing harness allows you to flash  ECUs when they are not installed in the bike. The bench flashing harness comes with a 12v plug and needs to be used in conjunction with the Woolich Racing Mitsubishi USB Interface.

Note: this product requires the purchase of Bin Files and a Woolich Racing Interface for use with the Woolich Racing Tuned software
US$105.00
ex Sales Tax VAT
More Details
12V Bench Flashing Power Supply with Type A Plug (USA, Canada, Japan)
12V Bench Flashing Power Supply with Type A Plug (USA, Canada, Japan)
This 12V, 1.5A Power Supply (max output 13V) has been designed for use with Woolich Racing Bench Harnesses.

This product comes with an integrated on/off switch and interchangeable Type A plug used in USA, Canada, Japan and Mexico.

Input: 100-240V 50/60Hz
*This power supply is NOT designed to be used as a battery charger.
US$37.00
ex Sales Tax VAT
More Details
12V Bench Flashing Power Supply with Type C plug (Europe, Asia)
12V Bench Flashing Power Supply with Type C plug (Europe, Asia)
This 12V, 1.5A Power Supply (max output 13V) has been designed for use with Woolich Racing Bench Harnesses.

This product comes with an integrated on/off switch and interchangeable Type C plug used in most of Europe, parts of Asia, and parts of South America.

Input: 100-240V 50/60Hz
*This power supply is NOT designed to be used as a battery charger.
US$37.00
ex Sales Tax VAT
More Details
12V Bench Flashing Power Supply with Type I plug (AU, NZ, China)
12V Bench Flashing Power Supply with Type I plug (AU, NZ, China)
This 12V, 1.5A Power Supply (max output 13V) has been designed for use with Woolich Racing Bench Harnesses.

This product comes with an integrated on/off switch and interchangeable Type I plug used in Australia, New Zealand and mainland China.

Input: 100-240V 50/60Hz
*This power supply is NOT designed to be used as a battery charger.

US$37.00
ex Sales Tax VAT
More Details
12V Bench Flashing Power Supply with Type G plug (UK, Malaysia & Singapore)
12V Bench Flashing Power Supply with Type G plug (UK, Malaysia & Singapore)
This 12V, 1.5A Power Supply (max output 13V) has been designed for use with Woolich Racing Bench Harnesses.

This product comes with an integrated on/off switch and interchangeable Type  G plug used in the UK, Ireland, Malaysia & Singapore.

Input: 100-240V 50/60Hz
*This power supply is NOT designed to be used as a battery charger.
US$37.00
ex Sales Tax VAT
More Details
Kawasaki Exhaust Valve Eliminator Type 2 (KEV-E2)
Kawasaki Exhaust Valve Eliminator Type 2 (KEV-E2)
The Woolich Racing Exhaust Valve Eliminator allows you to remove the Exhaust Valve and Exhaust Valve Servo motor from the motorcycle. The eliminator prevents the bike from displaying the Malfunction Indicator Light (MIL) on the dash and prevents fault codes from appearing in the diagnostic system.
The eliminator should be plugged into the bikes wiring harness before the ignition is switched back on to prevent fault codes from being stored in the ECU.

Supported models:

 - 2007-2016 Z1000
 - 2011-2013 Ninja 1000
 - 2004-2022 ZX10R
 - 2005-2018 ZX6R
 - 2021 ZX6R
 - 2005-2006 ZX6RR
 - 2007-2010 Z750
US$51.00
ex Sales Tax VAT
More Details
Kawasaki Pair Valve Eliminator Type 1 (KPV-E1)
Kawasaki Pair Valve Eliminator Type 1 (KPV-E1)
The Woolich Racing PAIR Valve Eliminator allows you to remove the PAIR Valve and PAIR Valve Solenoid from the motorcycle. The eliminator prevents the bike from displaying the Malfunction Indicator Light (MIL) on the dash and prevents fault codes from appearing in the diagnostic system.
The eliminator should be plugged into the bike's wiring harness before the ignition is switched back on to prevent fault codes being stored in the ECU.

Supported models:

 - 2012-2021 Ninja 650
 - 2012-2021 ZX14R
 - 2013-2017 Ninja 300
 - 2014-2021 Ninja 1000
 - 2018-2021 Ninja 400
 - 2009-2021 ZX6R
 - 2014-2016 Z1000
 - 2015-2018 Versys 1000
 - 2015-2021 Vulcan S
 - 2008-2021 ZX10R
 - 2016-2021 Versys 650
 - 2017-2021 ZX10RR
 - 2017-2021 Versys X 300
 - 2017-2021 Z125 Pro
 - 2017-2021 Z650
 - 2018-2021 Mule Pro FX
 - 2018-2021 Mule Pro FXR
 - 2018-2021 Mule Pro FXT
 - 2018-2021 Teryx
 - 2018-2021 Teryx 4
 - 2019-2021 Mule Pro MX
 - 2019-2021 W800 Café
 - 2020-2021 KLX230
 - 2020-2021 KLX230R
 - 2020-2021 KLX300R
 - 2020-2021 Z400
 - 2021 Teryx KRX 1000
 - 2008-2021 Concours 14
 - 2017-2020 Z900
 - 2009-2013 ZX14
 - 2018-2020 Z900RS
 - 2015-2021 H2
 - 2019-2021 H2 SX SE
-  2020-2021 Versys 1000
US$41.00
ex Sales Tax VAT
More Details
