Woolich Racing Products

Tuning Shop Packages
Woolich Racing Tuned Software

Select the Manufacturer, Model and Year.

Filters

Manufacturer
Model
Year
Product Type
Complete packages with Interface, Harness and Bin File Definitions
Product Description Price
2011-2017 Suzuki GSR 750 - USB D v3 Package
2011-2017 Suzuki GSR 750 - USB D v3 Package
This package includes everything you need to start tuning your 2011-2017 Suzuki GSR 750 with our USB D v3.
  • USB D v3
  • Suzuki Type 4a / 4b Harness (Please specify year model when ordering)
  • USB Cable
  • Bin File Definitions in the Woolich Racing Tuned software
US$414.00
ex Sales Tax VAT
More Details

This product comes with 1 Bin File Definition Key allowing you to tune 1 ECU's as many times as you like. Additional Bin File Definition Keys are required for each additional ECU's and can be purchased from within the WRT software.

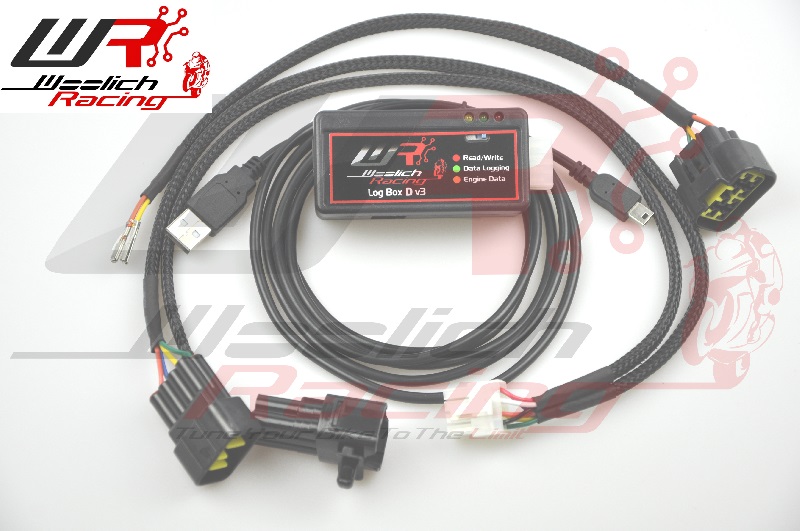

2011-2012 Suzuki GSR 750 - Log Box D v3 - Zeitronix ZT-3 Wideband O2 Package
2011-2012 Suzuki GSR 750 - Log Box D v3 + Zeitronix ZT-3 Wideband O2 Package 2011-2012 Suzuki GSR 750 - Log Box D v3 + Zeitronix ZT-3 Wideband O2 Package
This package includes everything you need to start tuning your 2011-2012 Suzuki GSR 750 with our Log Box D v3 and Zeitronix ZT-3 Wideband O2 Sensor.

  • Log Box D v3
  • USB Cable
  • On board 4GB micro SD card
  • Zeitronix ZT-3 Wideband O2 Controller
  • Zeitronix Wideband O2 Sensor (3 foot cable)
  • RJ12 cable to connect Zeitronix to Log Box
  • Zeitronix Installation Kit (12v relay, wires, wideband O2 bung and connectors etc)
  • Suzuki Harness Type 4b
  • Bin File Definitions in Woolich Racing Tuned Software
US$751.00
ex Sales Tax VAT
More Details

This product comes with 1 Bin File Definition Key allowing you to tune 1 ECU's as many times as you like. Additional Bin File Definition Keys are required for each additional ECU's and can be purchased from within the WRT software.
Bin File Definitions - for use in Woolich Racing Tuned software
Product Description Price
2011-2015 GSR 750 Stock Bin Files
2011-2015 GSR 750 Stock Bin Files
Purchase this item to gain access in the Woolich Racing Tuned software to the stock bin files for the 2011-2015 GSR 750



Note: The WRT software is only available to verified Woolich accounts. We only verify customer accounts that have purchased the necessary products (Woolich Log Box or USB interface, along with the appropriate harness and -if required- a bin file definition key) to flash their ECU. Accounts with no purchases of the required products can not be verified.
US$ 105.00
ex Sales Tax VAT
More Details

   Features available for Suzuki GSR 750 2011-2015
  • IAP Fuel Maps
  • TPS Fuel Maps
  • Ignition Timing Maps
  • Secondary Throttle Plate (STP) Opening Maps
  • Exhaust Valve Opening Maps
  • RPM Limiter
  • Disable Stock O2 Sensor
  • Disable Exhaust Valve
  • ECU Mode
  • Engine Data - View Live Engine Data
  • Woolich Racing AutoTune - (Requires Applicable LogBox + Zeitronix Package)
  • Diagnostics: Read and Clear Fault Codes - (Requires Applicable V3 Interface)

ECU Part Numbers:
  • 32920-08J00
  • 32920-08J00 3J06SE00
  • 32920-08J00 3J07SE03
  • 32920-08J02
  • 32920-08J10
  • 32920-08J11
  • 32920-08J30 3J07SE30
  • 32920-08J30 3J08SE30
  • 32920-08J32
  • 32920-08J40
  • 32920-08J50
  • 32920-08J51
  • 32920-08J60
  • 32920-08J61
  • 32920-08J80

This product comes with 1 Bin File Definition Key allowing you to tune 1 ECU's as many times as you like. Additional Bin File Definition Keys are required for each additional ECU's and can be purchased from within the WRT software.
Harnesses
Product Description Price
Extension Harness Long
Extension Harness Long
The Extension Harness - Long is a 8 pin Molex (male) to 8 Pin Molex (female) entension harness 1100mm long that allows you to extend the length of all Woolich Racing Harnesses.
US$32.00
ex Sales Tax VAT
More Details
Extension Harness Short
Extension Harness Short
The Extension Harness - Short is a 8 pin Molex (male) to 8 Pin Molex (female) extension harness 600mm long that allows you to extend the length of all Woolich Racing Harnesses.
US$21.00
ex Sales Tax VAT
More Details
Barrel to 2 Pin Plug Bench Harness Power Supply Connector
Barrel to 2 Pin Plug Bench Harness Power Supply Connector
This harness allows you to connect the 2 pin plug used on our Bench Harnesses to a 12v Power Supply with a standard 2.5mm barrel connector.
US$10.00
ex Sales Tax VAT
More Details
Suzuki Dealer Mode Harness Type 1
Suzuki Dealer Mode Harness Type 1
The Suzuki Dealer Mode Harness plugs into the bikes diagnostic plug. When you turn the ignition on with the harness installed you will be able to see fault codes and access dealer menu's on the dash. The features available vary with model.


Compatible with the following models:

Suzuki C109 Boulevard/C109 Intruder 2008-2011
Suzuki C90 Boulevard/VL 1500 Intruder 2005-2015
Suzuki GSF 1250 (Bandit) 2007-2016
Suzuki GSF 650 (Bandit) 2008-2012
Suzuki GSR 400 2006-2009
Suzuki GSR 600 2006-2010
Suzuki GSR 750 2011-2017
Suzuki GSX 1400 2004-2008
Suzuki GSX1300BK (B-King)2007-2012
Suzuki GSX1300R (Hayabusa)2008-2020
Suzuki GSX-R 1000 2003-2024
Suzuki GSX-R 1000 EM-Pro Race Kit ECU 2020
Suzuki GSX-R 1000R 2017-2024
Suzuki GSX-R 600 2004-2024
Suzuki GSX-R 750 2004-2024
Suzuki GSX-S 1000 2015-2020
Suzuki GSX-S 1000 Katana 2019-2020
Suzuki GSX-S 750 2015 2020
Suzuki M109R 2006-2020
Suzuki SFV 650 SV 650S (Gladius)2009-2015
Suzuki SV 1000 2005-2008
Suzuki SV 650 2007-2012
US$16.00
ex Sales Tax VAT
More Details

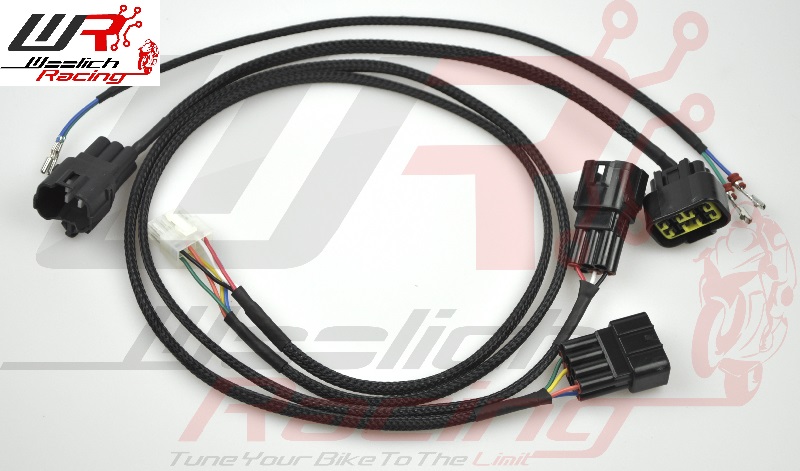

Suzuki Harness Type 4b (SH4B-SEH4B-B/G 2 WIRE)
Suzuki Harness Type 4b (SH4B + SEH4B + B/G 2 WIRE)
On Bike Harness includes:
  • Suzuki Type 4 Main Harness
  • Suzuki Extension Harness Type 4b
  • 2 wire harness
US$47.00
ex Sales Tax VAT
More Details

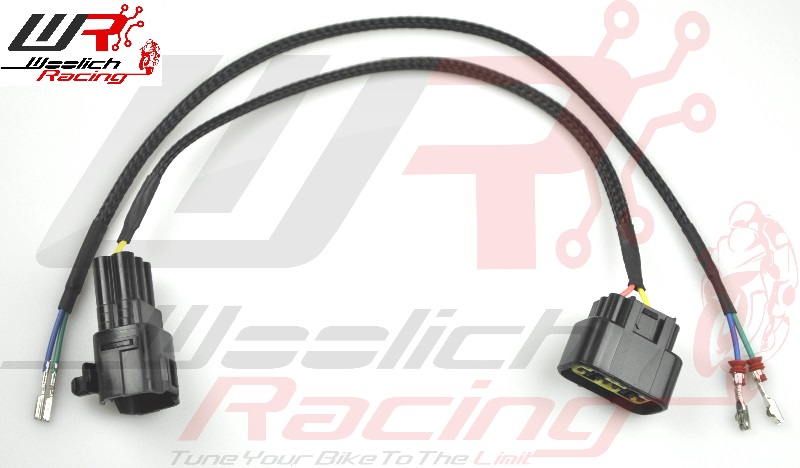

Suzuki Extension Harness Type 4b (SEH4B)
Suzuki Extension Harness Type 4b (SEH4B)
Extension Harness required for models that do not have a Yosh Box plug, this additional harness allows you to connect to these bikes.
Includes:
  • Suzuki Extension Harness Type 4b
  • 2 wire harness
US$26.00
ex Sales Tax VAT
More Details
Suzuki Bench Harness Type 4 (SBH4)
Suzuki Bench Harness Type 4 (SBH4)
The bench flashing harness allows you to flash ECUs when they are not installed in the bike.
US$101.00
ex Sales Tax VAT
More Details
12V Bench Flashing Power Supply with Type A Plug (USA, Canada, Japan)
12V Bench Flashing Power Supply with Type A Plug (USA, Canada, Japan)
This 12V, 1.5A Power Supply (max output 13V) has been designed for use with Woolich Racing Bench Harnesses.

This product comes with an integrated on/off switch and interchangeable Type A plug used in USA, Canada, Japan and Mexico.

Input: 100-240V 50/60Hz
*This power supply is NOT designed to be used as a battery charger.
US$37.00
ex Sales Tax VAT
More Details
12V Bench Flashing Power Supply with Type C plug (Europe, Asia)
12V Bench Flashing Power Supply with Type C plug (Europe, Asia)
This 12V, 1.5A Power Supply (max output 13V) has been designed for use with Woolich Racing Bench Harnesses.

This product comes with an integrated on/off switch and interchangeable Type C plug used in most of Europe, parts of Asia, and parts of South America.

Input: 100-240V 50/60Hz
*This power supply is NOT designed to be used as a battery charger.
US$37.00
ex Sales Tax VAT
More Details
12V Bench Flashing Power Supply with Type I plug (AU, NZ, China)
12V Bench Flashing Power Supply with Type I plug (AU, NZ, China)
This 12V, 1.5A Power Supply (max output 13V) has been designed for use with Woolich Racing Bench Harnesses.

This product comes with an integrated on/off switch and interchangeable Type I plug used in Australia, New Zealand and mainland China.

Input: 100-240V 50/60Hz
*This power supply is NOT designed to be used as a battery charger.

US$37.00
ex Sales Tax VAT
More Details
12V Bench Flashing Power Supply with Type G plug (UK, Malaysia & Singapore)
12V Bench Flashing Power Supply with Type G plug (UK, Malaysia & Singapore)
This 12V, 1.5A Power Supply (max output 13V) has been designed for use with Woolich Racing Bench Harnesses.

This product comes with an integrated on/off switch and interchangeable Type  G plug used in the UK, Ireland, Malaysia & Singapore.

Input: 100-240V 50/60Hz
*This power supply is NOT designed to be used as a battery charger.
US$37.00
ex Sales Tax VAT
More Details
Motorcycle Diagnostics - OBD2
Product Description Price
Suzuki Dealer Mode Harness Type 1
Suzuki Dealer Mode Harness Type 1
The Suzuki Dealer Mode Harness plugs into the bikes diagnostic plug. When you turn the ignition on with the harness installed you will be able to see fault codes and access dealer menu's on the dash. The features available vary with model.


Compatible with the following models:

Suzuki C109 Boulevard/C109 Intruder 2008-2011
Suzuki C90 Boulevard/VL 1500 Intruder 2005-2015
Suzuki GSF 1250 (Bandit) 2007-2016
Suzuki GSF 650 (Bandit) 2008-2012
Suzuki GSR 400 2006-2009
Suzuki GSR 600 2006-2010
Suzuki GSR 750 2011-2017
Suzuki GSX 1400 2004-2008
Suzuki GSX1300BK (B-King)2007-2012
Suzuki GSX1300R (Hayabusa)2008-2020
Suzuki GSX-R 1000 2003-2024
Suzuki GSX-R 1000 EM-Pro Race Kit ECU 2020
Suzuki GSX-R 1000R 2017-2024
Suzuki GSX-R 600 2004-2024
Suzuki GSX-R 750 2004-2024
Suzuki GSX-S 1000 2015-2020
Suzuki GSX-S 1000 Katana 2019-2020
Suzuki GSX-S 750 2015 2020
Suzuki M109R 2006-2020
Suzuki SFV 650 SV 650S (Gladius)2009-2015
Suzuki SV 1000 2005-2008
Suzuki SV 650 2007-2012
US$16.00
ex Sales Tax VAT
More Details
